With a sophisticated design and excellent visibility, the panel is easy to operate and maintain, with colors changing according to conditions, enhancing sterilization reliability.

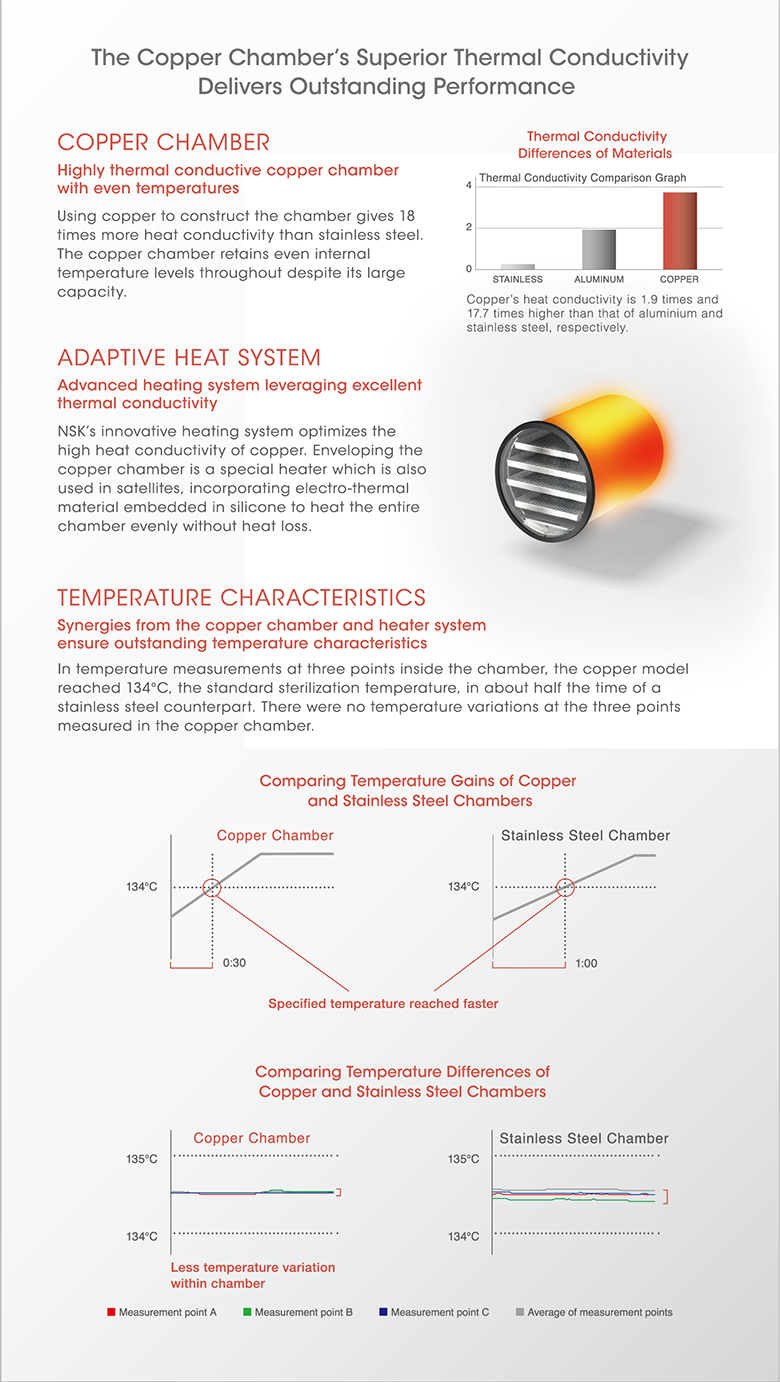

Advanced heating system leveraging excellent thermal conductivity
NSK's innovative heating system optimizes the high heat conductivity of copper.
Enveloping the copper chamber is a special heater which is also used in satellites, incorporating electro-thermal material embedded in silicone to heat the entire chamber evenly without heat loss.
All sterilization cycles a re recorded on a USB flash drive, and no special software is required to view and pr int records of all cycles. The system records all relevant cycle parameters against a unique date and time stamp.
A vacuum pump removes air from the chamber and handpiece cavities before sterilization.
The iClave plus ventilates air through a bacterial filter during the drying phase, eliminating the possibility of re-contamination.

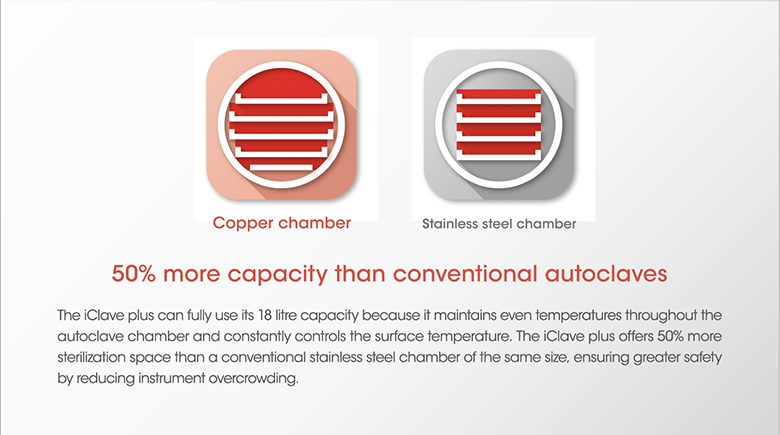

The iClave plus can fully use its 18 litre capacity because it maintains even temperatures throughout the autoclave chamber and constantly controls the surface temperature.
The iClave plus offers 50% more sterilization space than a conventional stainless steel chamber of the same size, ensuring greater safety by reducing instrument overcrowding.
|1. UNIVERSAL||134°C||5 min||3 vacuum||B|
|2. DELICATE||121°C||20 min||3 vacuum||B|
|3. FLASH||134°C||3 min||2 vacuum||S|
|4. SMALL LOAD*1||134°C||5 min||3 vacuum||B|
|5. PRION||134°C||18 min||3 vacuum||B|
|6. CRITICAL 134°C||134°C||5 min||4 vacuum||B|
|7. CRITICAL 121°C||121°C||20 min||4 vacuum||B|
|8. SPECIAL||105-135°C||3-90 min||2-4 vacuum||-|
• Bowie & Dick : 134°C / 3.5 min / 3 vacuum
• Vacuum test : 20 min
*1 small load : included hollow instruments type A and B (MAX 0.5 kg)
