Implant

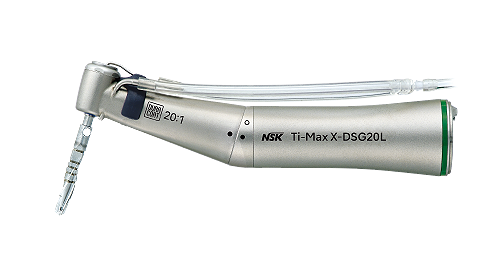

X-DSG20L20:1

  • Surgical Applications/X-DSG20L
    • Optic
    • Model:X-DSG20L
    • Order Code:C1068
    • Non-Optic
    • Model:X-DSG20
    • Order Code:C1067

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Double Sealing System

    Lamineer Tips not included.

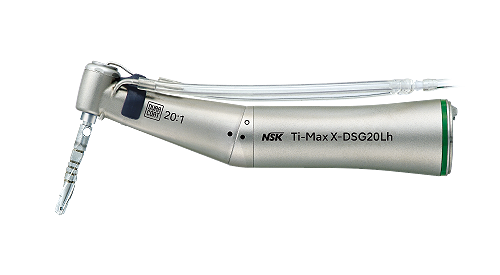

X-DSG20Lh20:1

  • Surgical Applications/X-DSG20Lh
    • Optic
    • Model:X-DSG20Lh
    • Order Code:C1076
    • Non-Optic
    • Model:X-DSG20h
    • Order Code:C1075

    Specifications

    • Gear Ratio
    • 20 : 1 Reduction
    • Water Spray
    • External and Internal Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Hexagon Chucking System
    • Double Sealing System

    Lamineer tips not included.

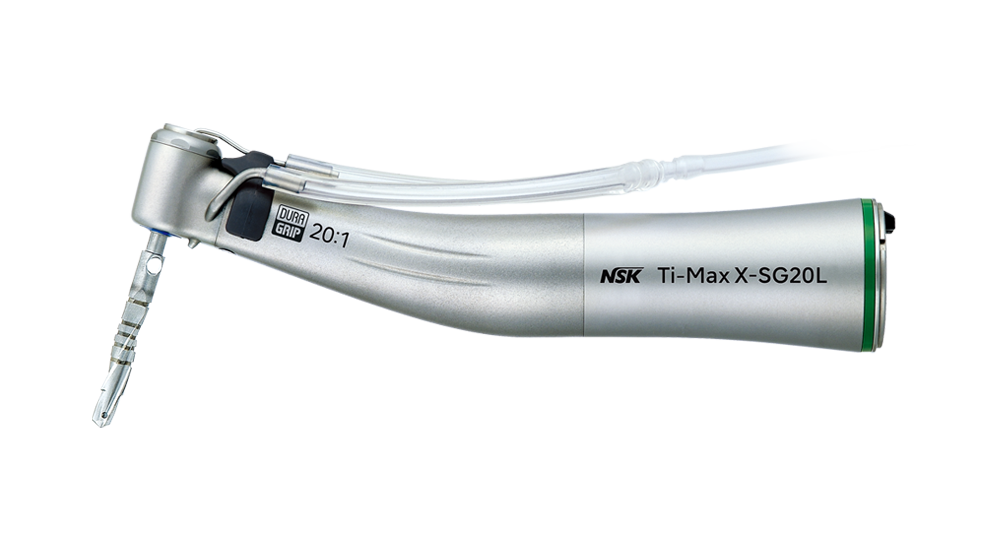

X-SG20L20:1

  • Surgical Applications/X-SG20L
    • Optic
    • Model:X-SG20L
    • Order Code:C1003

    Specifications

    • Gear Ratio
    • 20:1 Reduction
    • Water Spray
    • External and Internal Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,000 min-1
    • Max Torque
    • 80 Ncm

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Double Sealing System

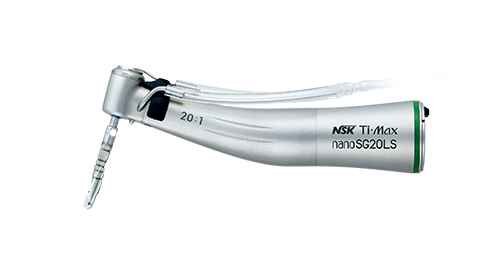

nanoSG20LS 20:1

nanoSG20LS

  • Optic
  • Model:nanoSG20LS
  • Order Code:C1103

Specifications

  • Gear Ratio
  • 20:1 Reduction
  • Water Spray
  • External and Internal Cooling (Kirschner and Meyer)
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 2,000 min-1
  • Max Torque
  • 80 Ncm

Features

  • Cellular Glass Optics
  • Push Button Chuck
  • Double Sealing System

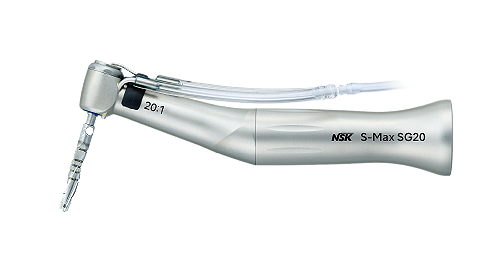

SG20 20:1

SG20

  • Non-Optic
  • Model:SG20
  • Order Code:C1010

Specifications

  • Gear Ratio
  • 20:1 Reduction
  • Water Spray
  • External and Internal Cooling
  • Body Material
  • Stainless
  • Max Speed
  • 2,000 min-1
  • Max Torque
  • 80 Ncm

Features

  • Push Button Chuck
  • Double Sealing System

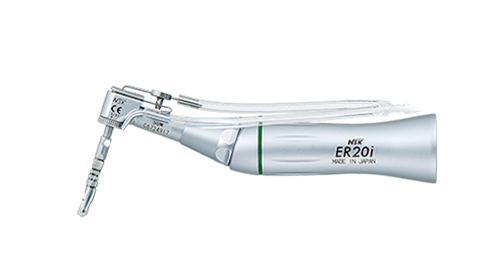

SGM-ER16i / SGM-ER20i / SGM-ER32i

SGM-ER16i / SGM-ER20i / SGM-ER32i

  • Non-Optic
  • Model:SGM-ER16i
  • Order Code:Y110126
  • Non-Optic
  • Model:SGM-ER20i
  • Order Code:Y110127
  • Non-Optic
  • Model:SGM-ER32i
  • Order Code:Y110128

Specifications

  • Max Speed
  • 2,500 min-1(16:1), 2,000 min-1(20:1), 1,250 min-1(32:1)
  • Water Spray
  • External and Internal Cooling

Features

  • with Wrench for Handpiece Attachment

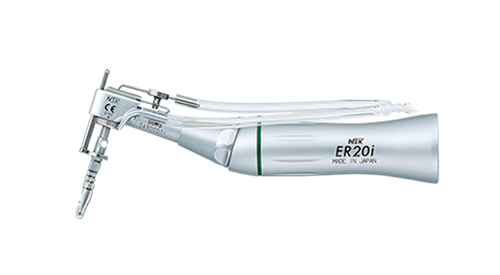

SGMS-ER20i 20:1

SGMS-ER20i

  • Non-Optic
  • Model:SGMS-ER20i
  • Order Code:Y110147

Specifications

  • Max Speed
  • 2,000 min-1
  • Water Spray
  • External and Internal Cooling

Features

  • Two Depth Indicators
  • Wrench for Handpiece Attachment
  • Ruler

Contra-Angle (Increasing)

X-SG93L1:3

  • Surgical Applications/X-SG93L
    • Optic
    • Model:X-SG93L
    • Order Code:C1004
    • Non-Optic
    • Model:X-SG93
    • Order Code:C1007

    Specifications

    • Gear Ratio
    • 1:3 Increasing
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Triple Spray / External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 120,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck

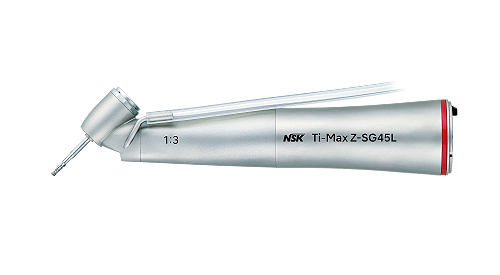

Z-SG45L

Z-SG45L

  • Optic
  • Model:Z-SG45L
  • Order Code:C1107
  • Non-Optic
  • Model:Z-SG45
  • Order Code:C1108

Specifications

  • Gear Ratio
  • 1:3 Increasing
  • For
  • FG Burs (Ø1.6)
  • Head
  • 45° Angle Head
  • Water Spray
  • Triple Spray / External cooling
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 120,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck

Contra-angle (Direct Drive)

X-SG25L1:1

  • Surgical Applications2/X-SG25L
    • Optic
    • Model:X-SG25L
    • Order Code:C1011

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck

X-SG65L1:1

  • Surgical Applications/X-SG65L
    • Optic
    • Model:X-SG65L
    • Order Code:H1009
    • Non-Optic
    • Model:X-SG65
    • Order Code:H1038

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • HP Burs (Ø2.35)
    • Water Spray
    • External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System

Micro Surgery

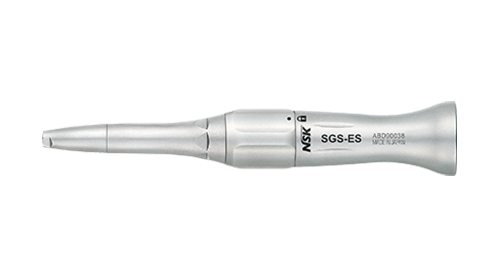

SGS-ES1:1

  • SGS-ES
    • Non-Optic
    • Model: SGS-ES
    • Order Code:H264

    Specifications

    • Head
    • Straight Handpieces
    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • Surgical Burs (Ø2.35)
    • Max Speed
    • 40,000 min-1

    Features

    • Twist Chuck

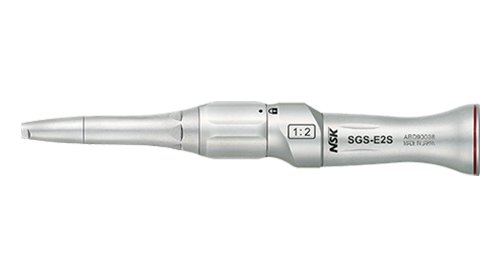

SGS-E2S1:2

  • SGS-E2S
    • Non-Optic
    • Model:SGS-E2S
    • Order Code:H266

    Specifications

    • Head
    • Straight Handpieces
    • Gear Ratio
    • 1:2 Increasing
    • For
    • Surgical Burs (Ø2.35)
    • Max Speed
    • 80,000 min-1

    Features

    • Twist Chuck

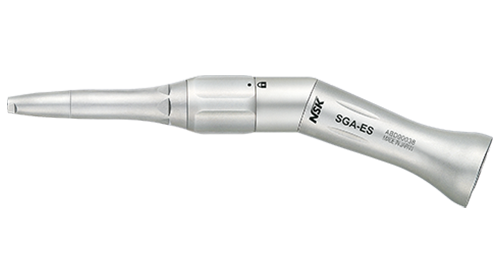

SGA-ES1:1

  • SGA-ES
    • Non-Optic
    • Model:SGA-ES
    • Order Code:H263

    Specifications

    • Head
    • 20° Angle Handpieces
    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • For Surgical Burs (Ø2.35)
    • Max Speed
    • 40,000 min-1

    Features

    • Twist chuck

Micro Saw

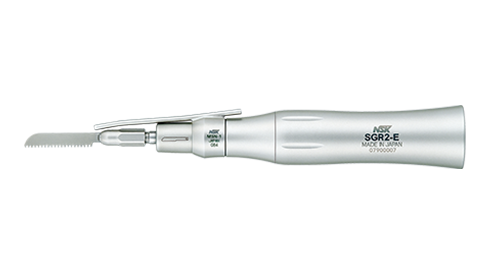

SGR2-E3:1

  • SGR2-E
    • Non-Optic
    • Model:SGR2-E
    • Order Code:SH162

    Specifications

    • Gear Ratio
    • 3:1 Reduction
    • Max
    • 12,600 Strokes / min

    Features

    • External Spray Nozzle

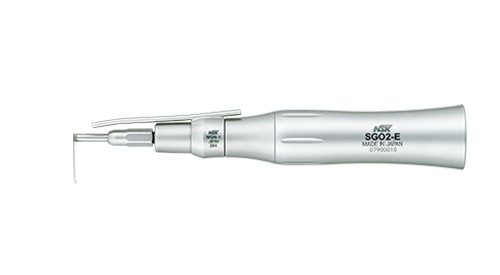

SGO2-E3:1

  • SGO2-E
    • Non-Optic
    • Model:SGO2-E
    • Order Code:SH164

    Specifications

    • Gear Ratio
    • 3:1 Reduction
    • Max
    • 12,800 Strokes / min

    Features

    • External Spray Nozzle

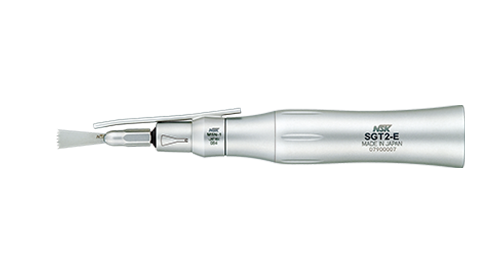

SGT2-E3:1

  • SGT2-E
    • Non-Optic
    • Model:SGT2-E
    • Order Code:SH163

    Specifications

    • Gear Ratio
    • 3:1 Reduction
    • Max
    • 12,600 Strokes / min

    Features

    • External Spray Nozzle

Blades for Reciprocating

  • Blades for Reciprocating
    • Model:SGR-1
    • Order Code:Y900072

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades
  • Blades for Reciprocating
    • Model:SGR-2
    • Order Code:Y900073

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades
  • Blades for Reciprocating
    • Model:SGR-3
    • Order Code:Y900074

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades

Blades for Oscillating

  • Blades for Oscillating
    • Model:SGO-1
    • Order Code:H174034

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-2
    • Order Code:H174044

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-3
    • Order Code:H174031

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-4
    • Order Code:H174041

    Features

    • Blade Thickness 0.3 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-5
    • Order Code:H174032

    Features

    • Blade Thickness 0.35 mm
    • Single Blade
  • Blades for Oscillating
    • Model:SGO-6
    • Order Code:H174042

    Features

    • Blade Thickness 0.35 mm
    • Single Blade

Blades for Sagittal

  • Blades for Sagittal
    • Model:SGT-1
    • Order Code:Y900075

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades
  • Blades for Sagittal
    • Model:SGT-2
    • Order Code:Y900076

    Features

    • Blade Thickness 0.35 mm
    • Pack of 10 Blades

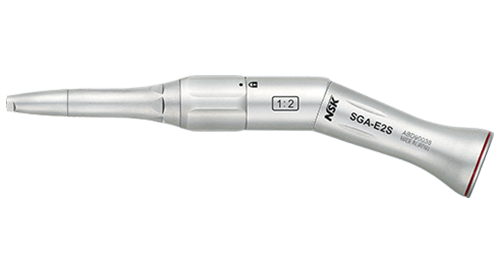

SGA-E2S1:2

  • SGA-E2S
    • Non-Optic
    • Model:SGA-E2S
    • Order Code:H265

    Specifications

    • Head
    • 20° Angle Handpieces
    • Gear Ratio
    • 1:2 Increasing
    • For
    • Surgical Burs (Ø2.35)
    • Max Speed
    • 80,000 min-1

    Features

    • Twist chuck
